Q. Can ANGLED, non-axis-aligned surfaces — raked console banks and a canted viewport — be built and still get a collide box that fits?

Yes, and the box survives detailing — 6 surfaces became 99 in the same sector and it still clears every one of their planes, at scale 0.727. The detail pass then found the room was black for a reason nobody had checked: sector ambient does not light a surface at all (sithRender.c:2046 vs :2718 for a thing), so the declared ambient=(0.24,0.30,0.36) lit the console meshes and nothing else, while three lights of range 0.55 in a room with a 0.803 half-diagonal reached 4 of 12 vertices. 32 of 36 samples were literally the bake floor, 0.120 — reproduced offline to four decimals before anything was changed. tessellate had also cut nothing, silently, because it only proposes lines the sector's vertices already occupy, so the floor was one quad and a pool of light on it was unrepresentable rather than dim. And the windows were "very tiled" twice over: a texture painting its own 4×4 pane grid, tiled 2.90 × 1.47, is 12 × 6 panes — fixed by taking the grid out of the art and cleaving real mullions into the leaning wall, which band_strip cannot touch and raw cleave_surface does in one call. Median vertex light .120 → .264 over 444 samples; room void .3007 → .0708.

archetype	Starship control room
project	p39-control-room
date	2026-08-30
built	1 sector · 99 surfaces · 8 things · 16 lights · 18° cant · 11 textures
package	P39.GOB, readme.txt, screenshot.jpg
build	1 — 2026-09-05
sha256	12dc2af509ce19bd63bac1d0fd33e892220ab84767b1979be449cc7442e953cc

Installing it

Unzip it.
Drop the .GOB into the episode folder of a Jedi Knight install — the one that already has JK1.GOB in it.
Pick it from the episode list. On a libretro frontend, load the .GOB itself as content.

The GOB carries its own level, cogs, materials and sounds and reads the stock resource/ for everything else. There is no retail game data in the zip.

These are living projects, not finished releases. A level is rebuilt whenever something is learned — a lighting rule, a texture orientation, a whole detail pass — and it keeps its filename through all of it. The build number is how to tell which one you have: it is printed in the readme inside every zip, and it only moves when the level's bytes actually change.

Screenshots

reference

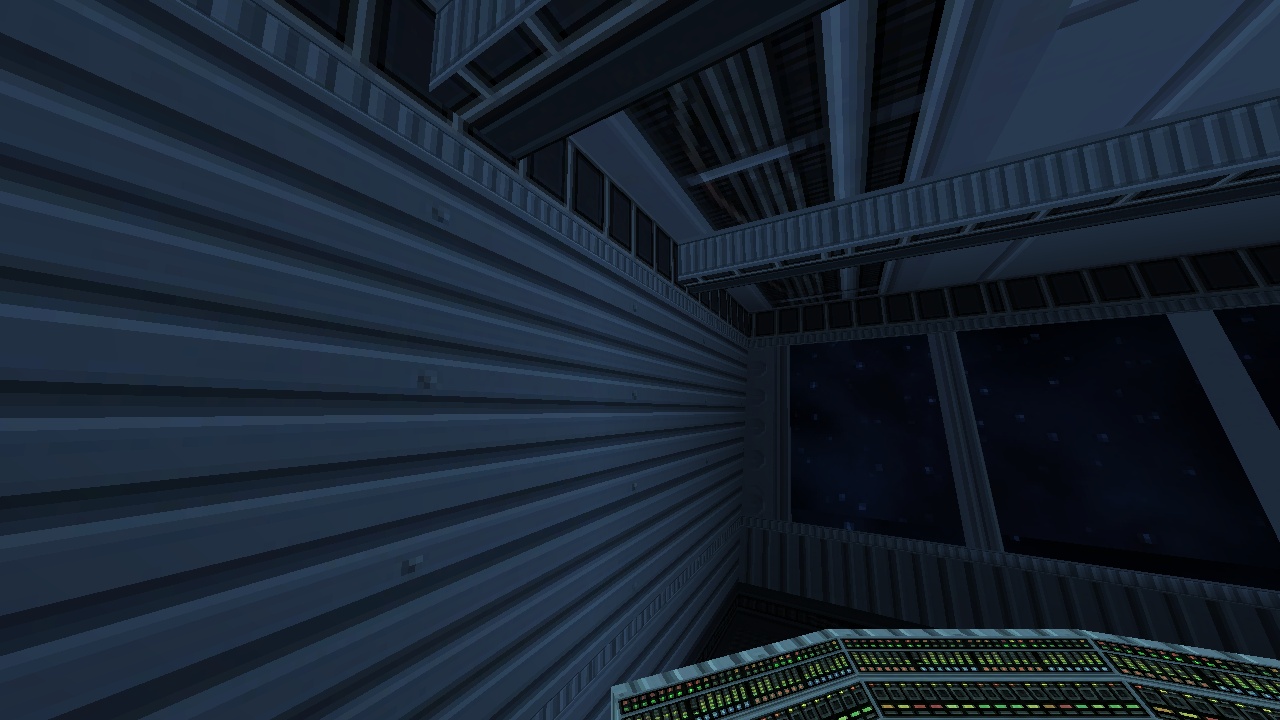

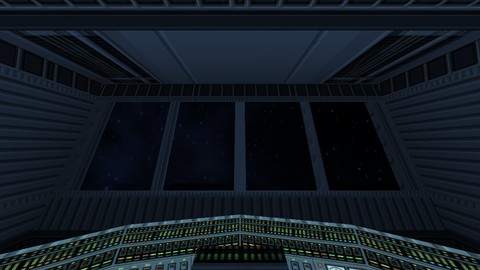

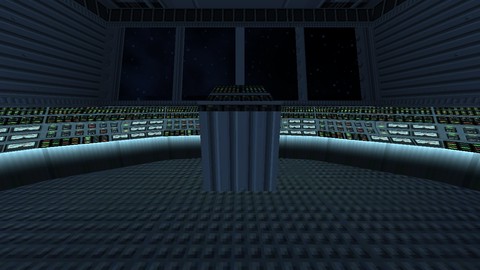

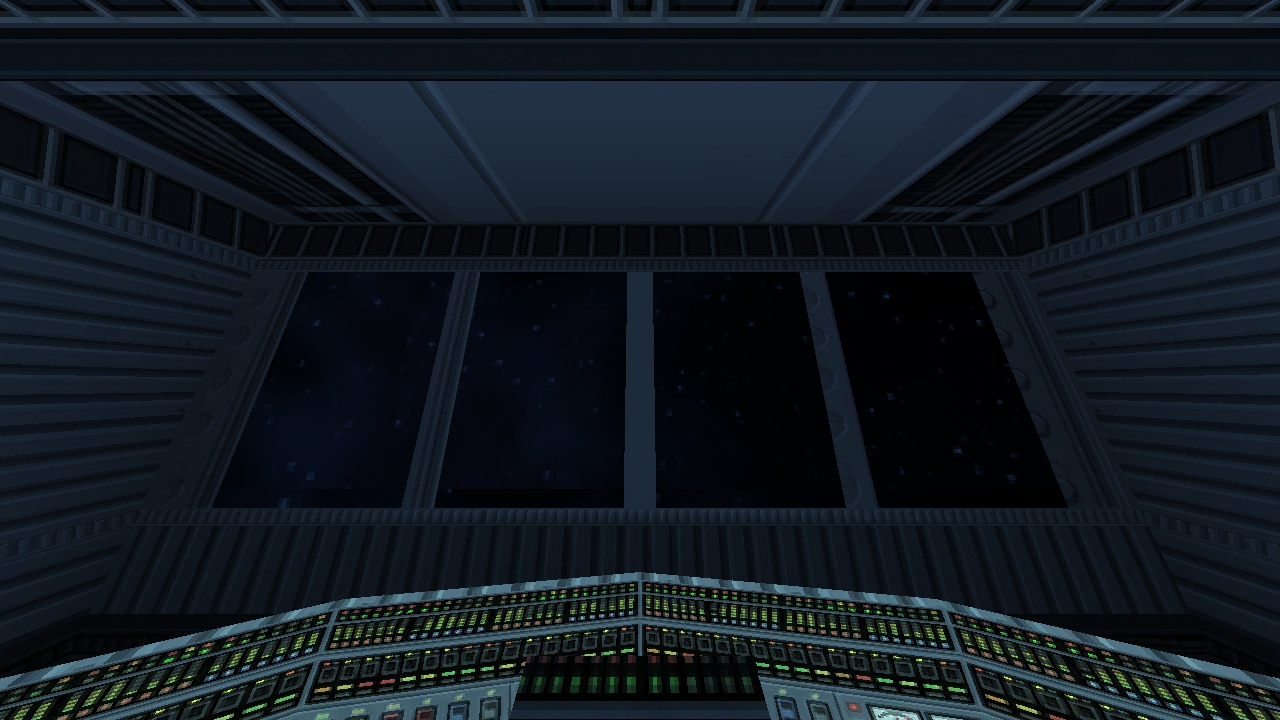

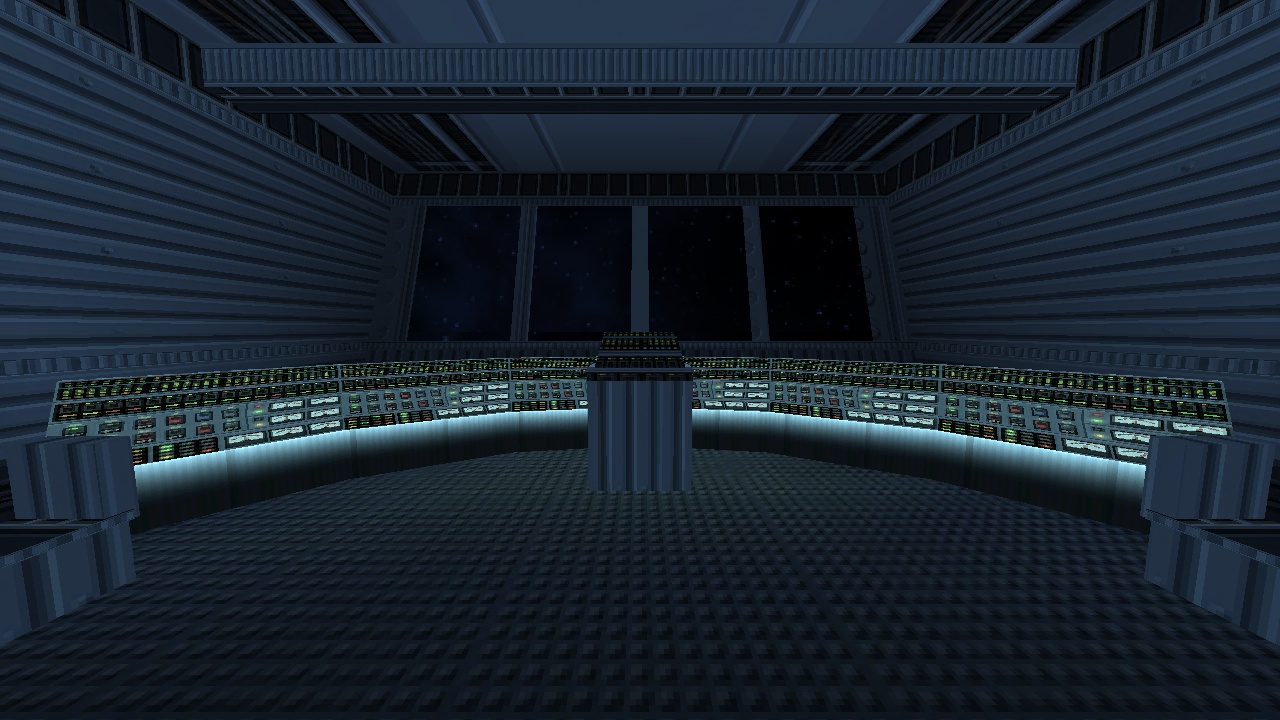

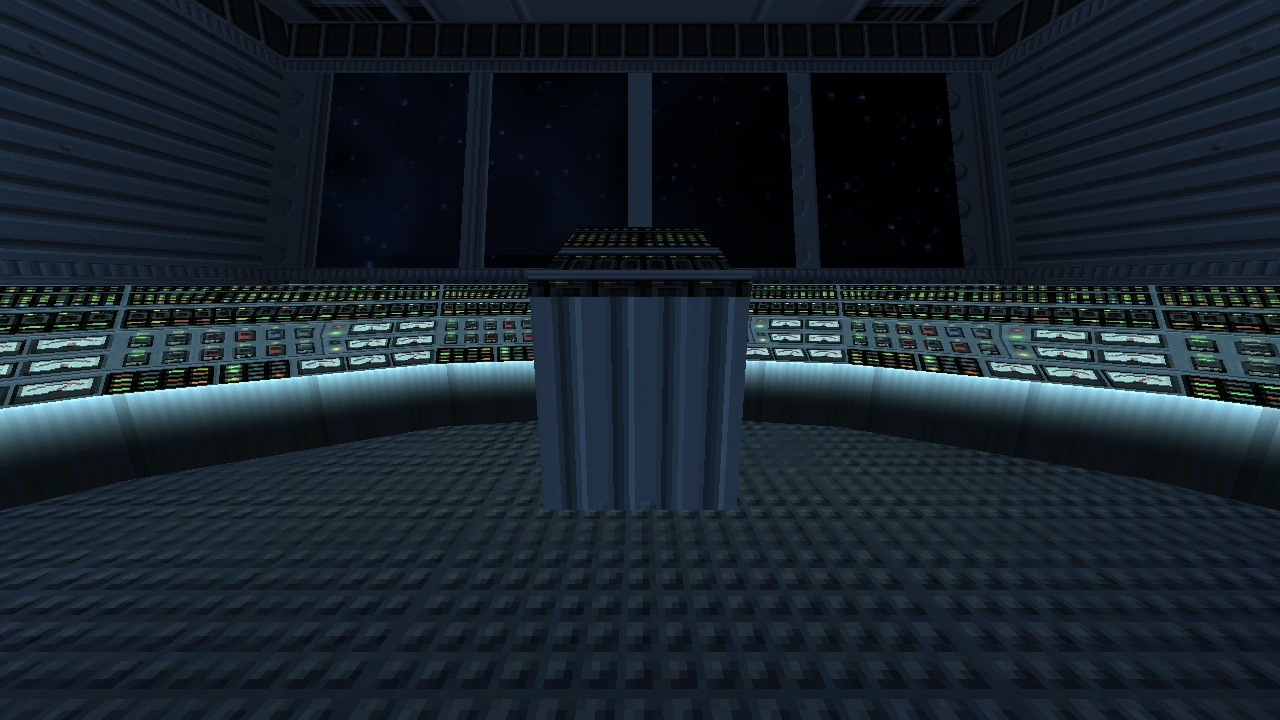

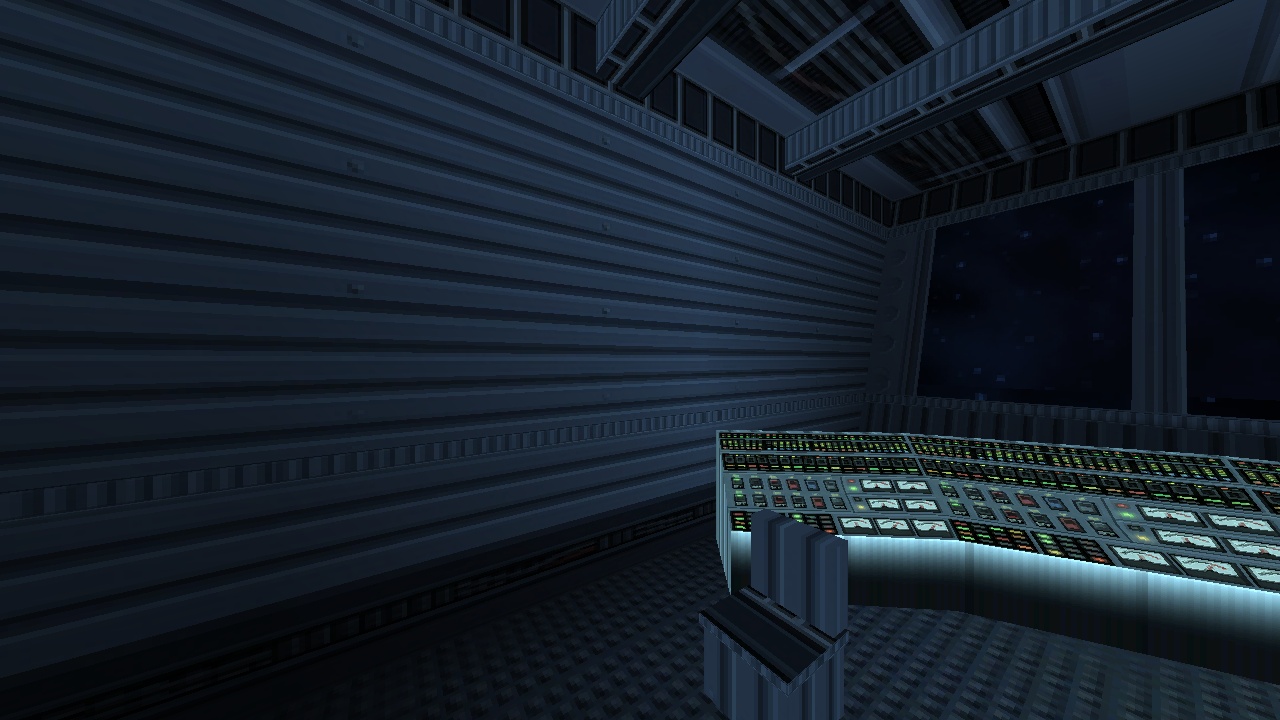

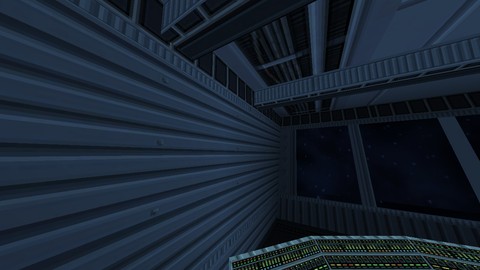

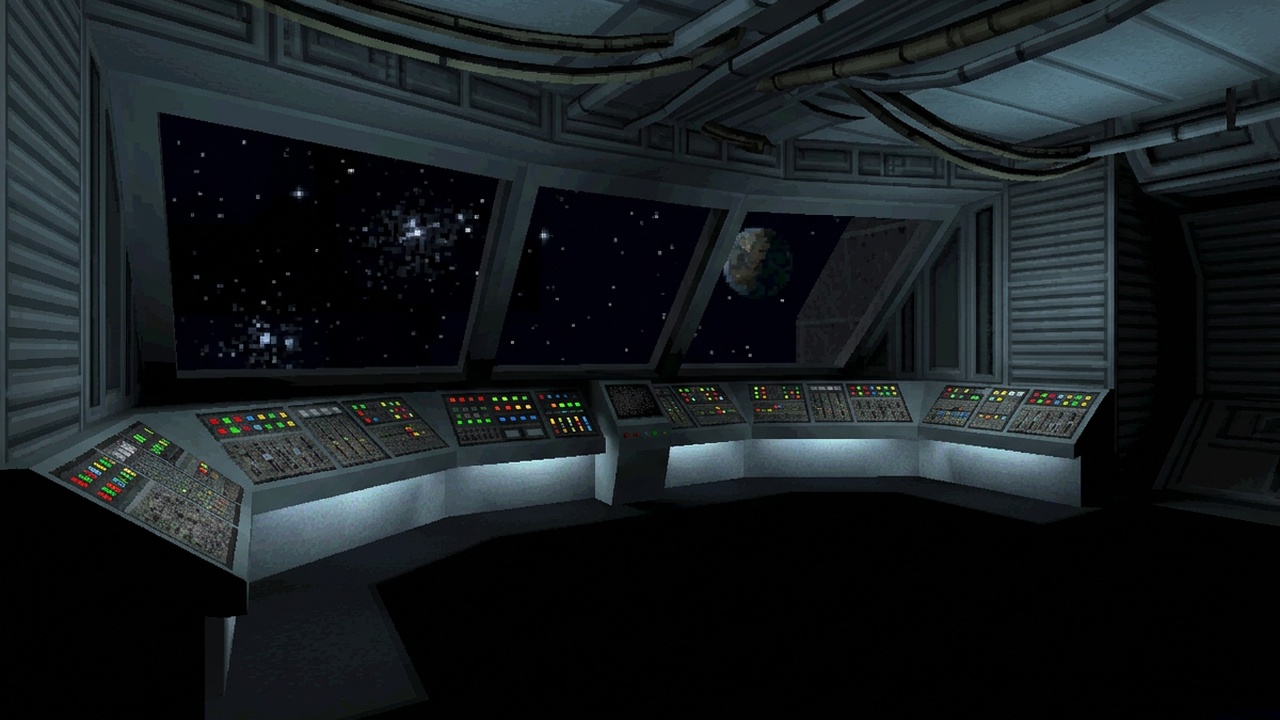

in engine

Textures generated for this project

$crpanel$ $crdeck$ $crroof$ $crglass$ $crconsole$ $crtrim$ $crtrim2$ $crmull$ $crbeam$ $crhatch$ $crglow$
