Q. Do dense small rooms with many doors and crossfire sightlines make alien mercenaries read differently from Imperials — and what happens to a geometry checker in a level that kills the thing it is measuring with?

A dead player and a bricked-up doorway print the same line, character for character. geom gives a walk 1800 frames; thirteen hostiles do not allow ninety seconds. A dead player does not move, so goto trips none of its three failure shapes — STUCK is gated on forward thrust and a corpse is never commanded forward — and all you get is never arrived; sectors visited [15]. The tell is one bit, SITH_TF_DEAD = 0x200, appearing between two 12-frame polls. The same walk one second after boot arrives in 49 ticks. And it is non-deterministic — same binary, same JKL, same manifest, one run arrives and the next stalls — so this level's manifest declares NO walks at all and the crossings are asserted at boot time by destination sector instead. Thirty sectors in a 3.80 × 4.15 footprint, 1.9 sectors per square unit, and nothing clamped in the bake.

archetype	Nar Shaddaa hideout, the anti-corridor
project	p48-smuggler-den
date	2026-08-30
built	30 sectors · 460 surfaces · 30 adjoins · one cycle · 13 hostiles · 5 doors
package	P48.GOB, readme.txt, screenshot.jpg
build	1 — 2026-09-05
sha256	ddacb272162eee986562cacdb120b030fb5a0e00322c2dc0249bdc3b0337a2f5

Installing it

Unzip it.
Drop the .GOB into the episode folder of a Jedi Knight install — the one that already has JK1.GOB in it.
Pick it from the episode list. On a libretro frontend, load the .GOB itself as content.

The GOB carries its own level, cogs, materials and sounds and reads the stock resource/ for everything else. There is no retail game data in the zip.

These are living projects, not finished releases. A level is rebuilt whenever something is learned — a lighting rule, a texture orientation, a whole detail pass — and it keeps its filename through all of it. The build number is how to tell which one you have: it is printed in the readme inside every zip, and it only moves when the level's bytes actually change.

Screenshots

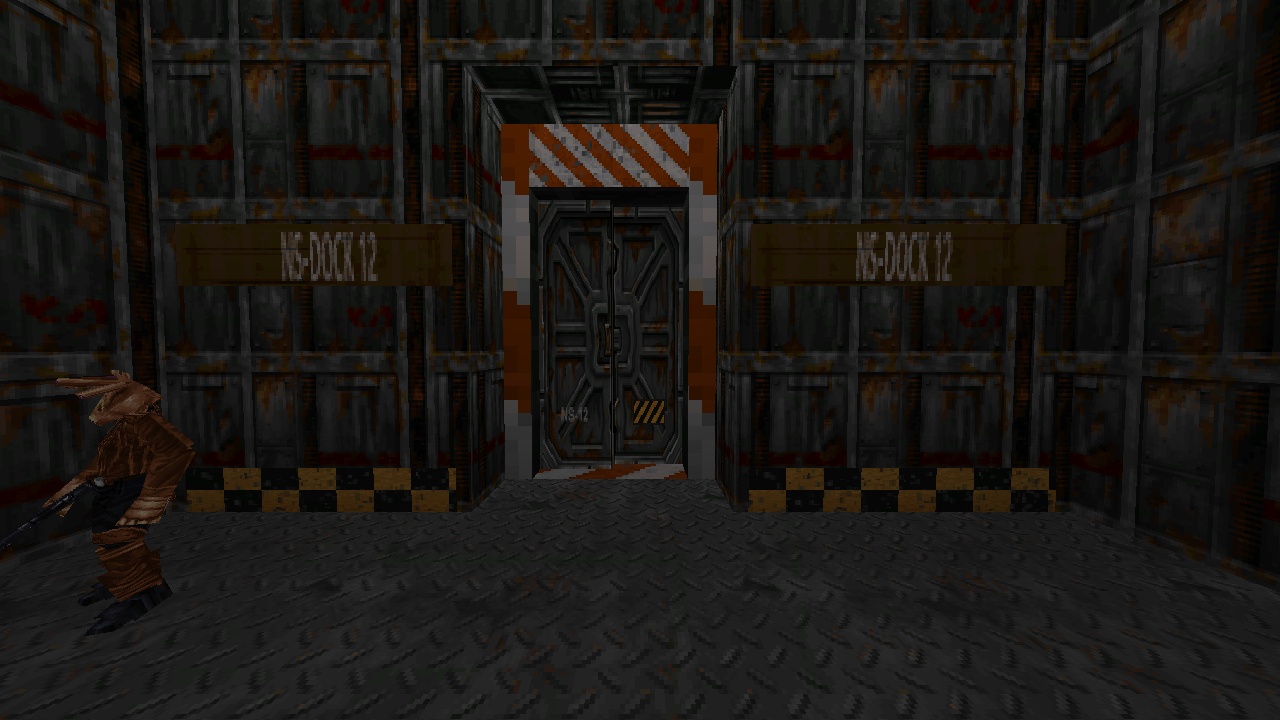

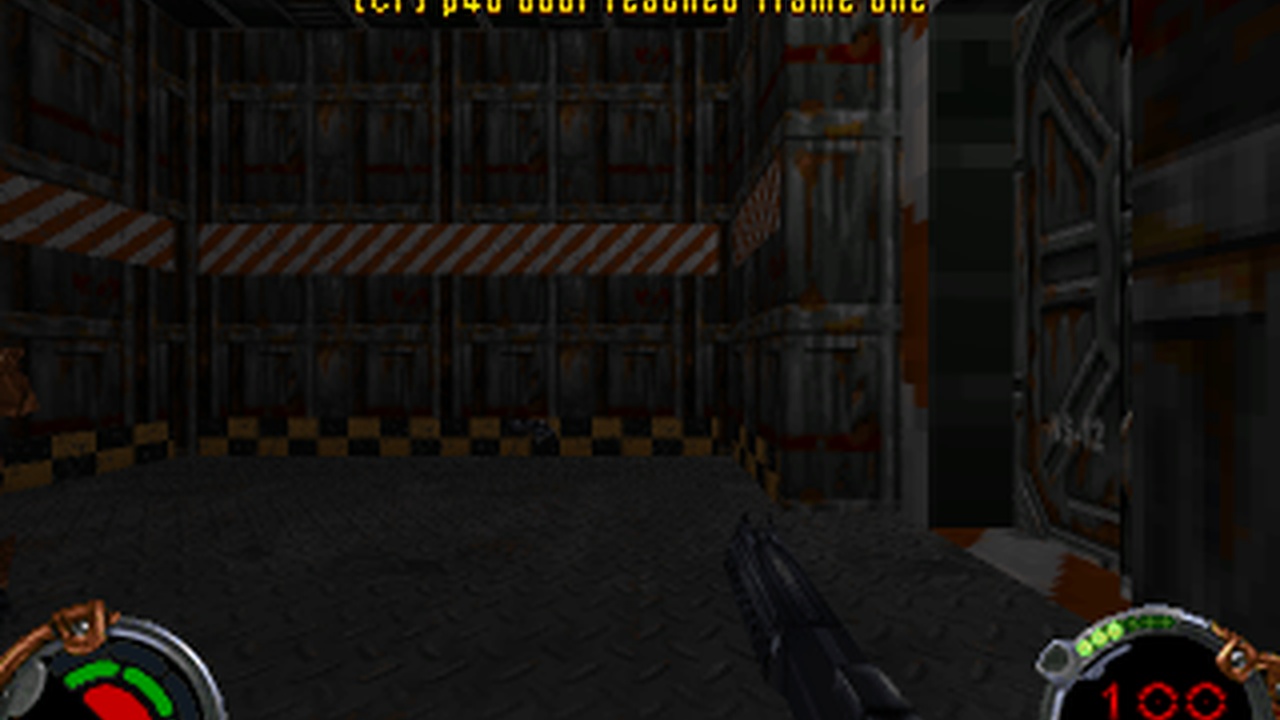

the killbox — 0.160 square, 1.23× the player's width, seen from all four doorways

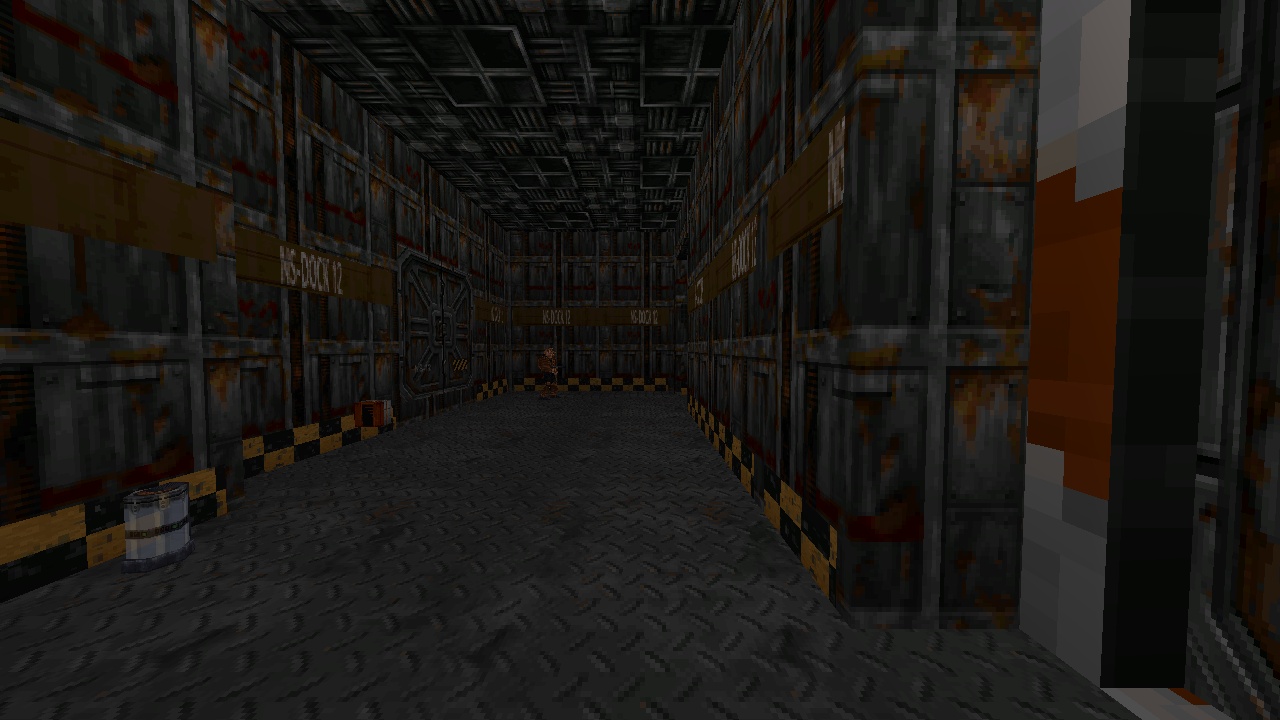

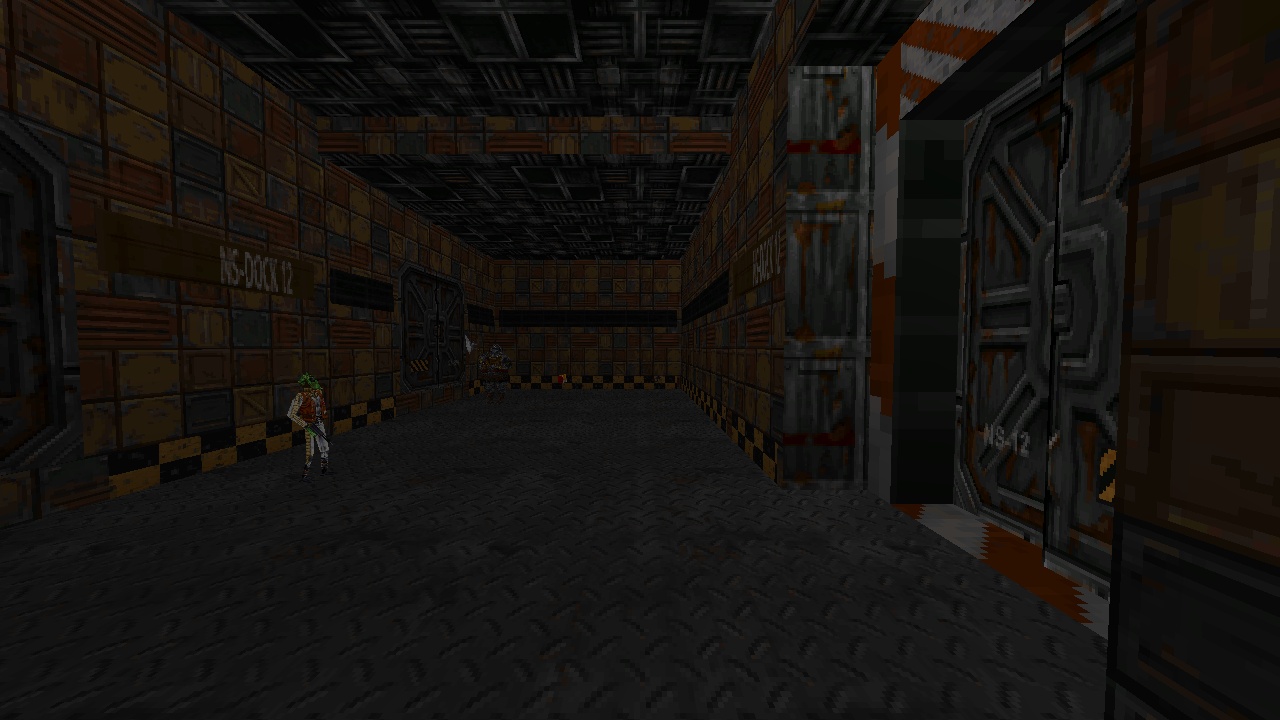

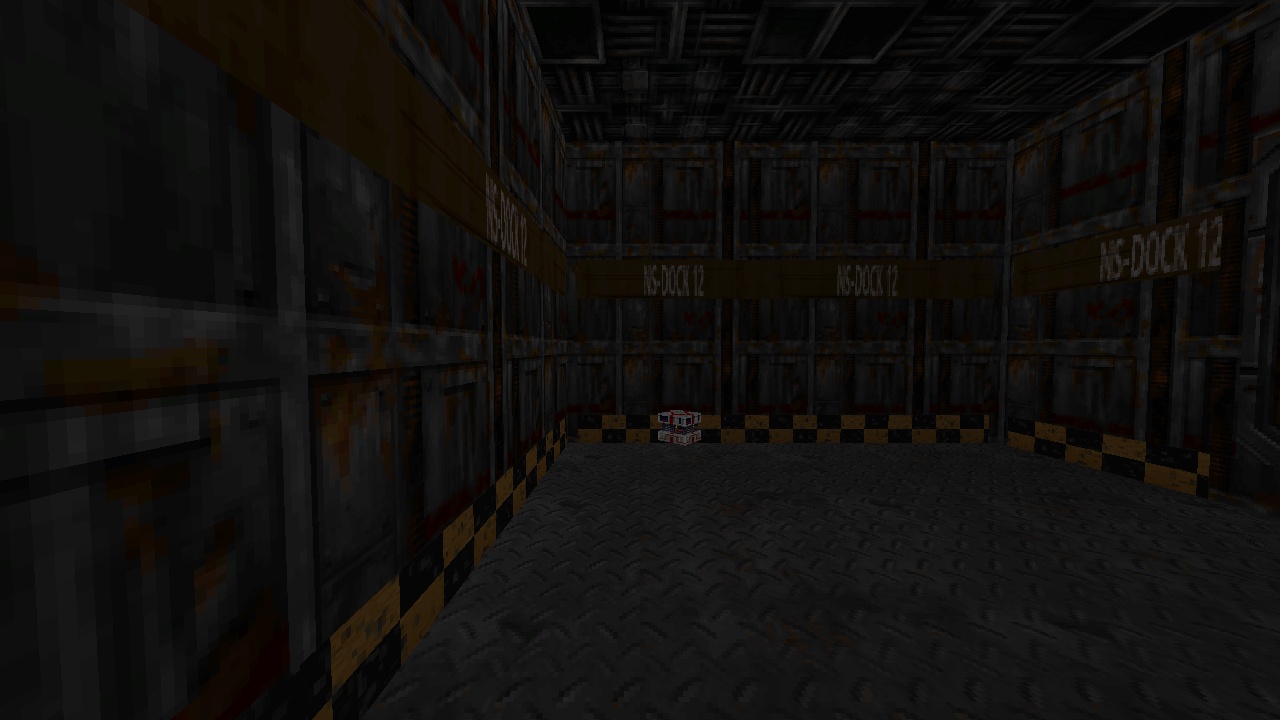

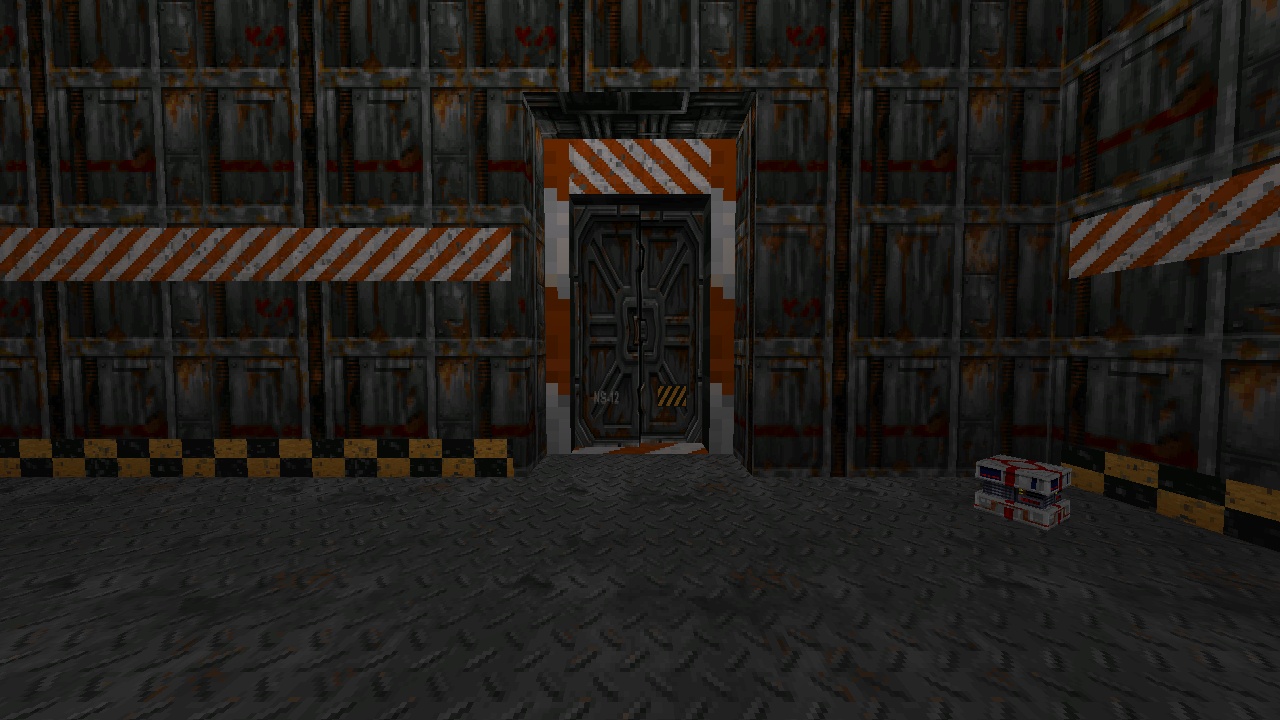

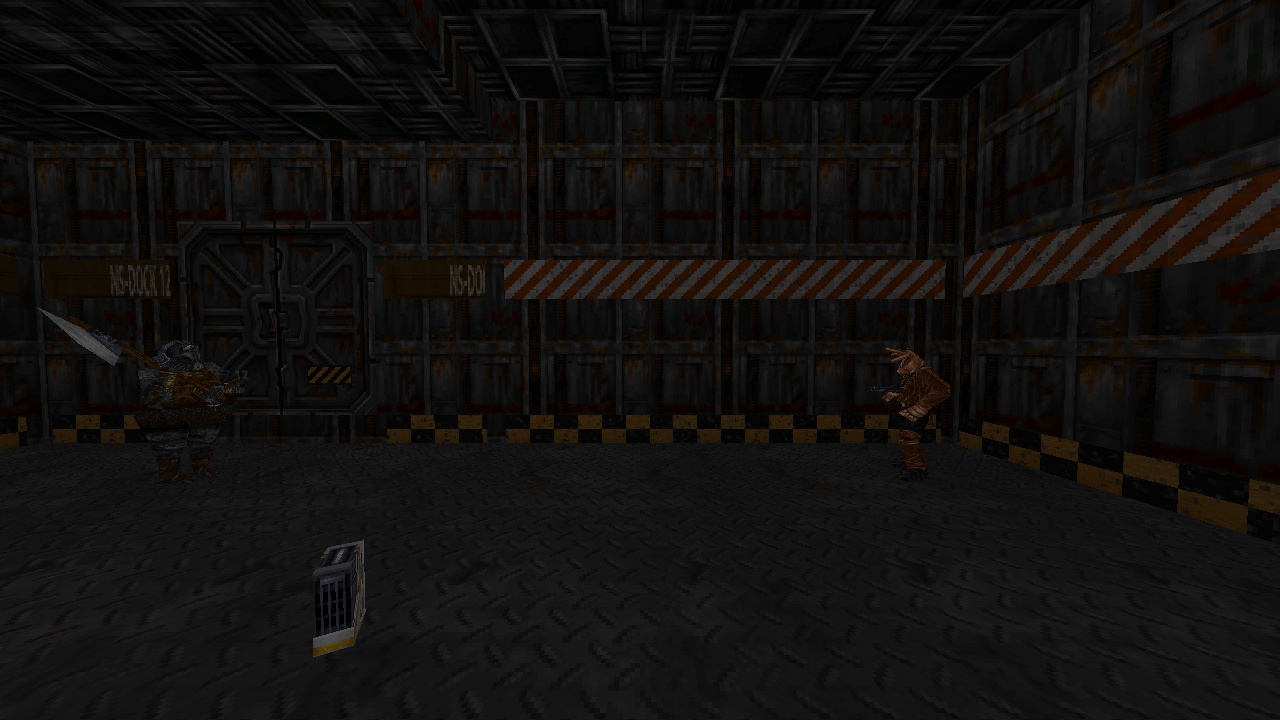

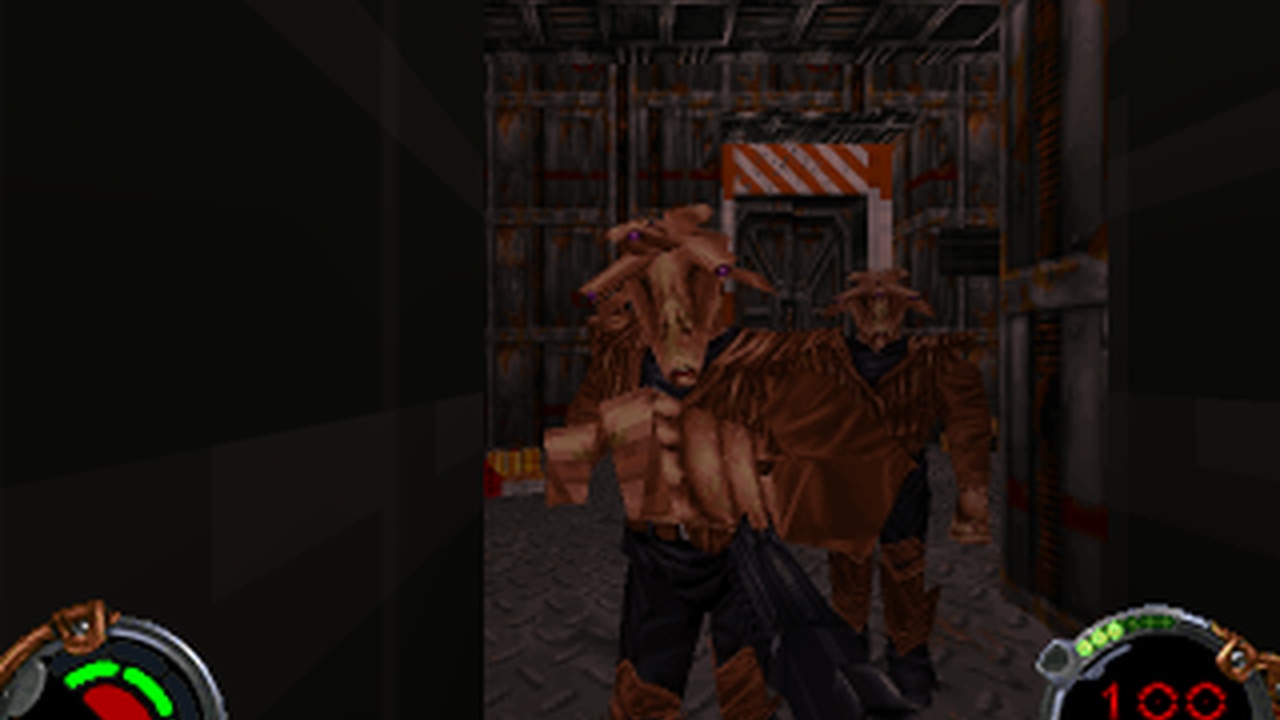

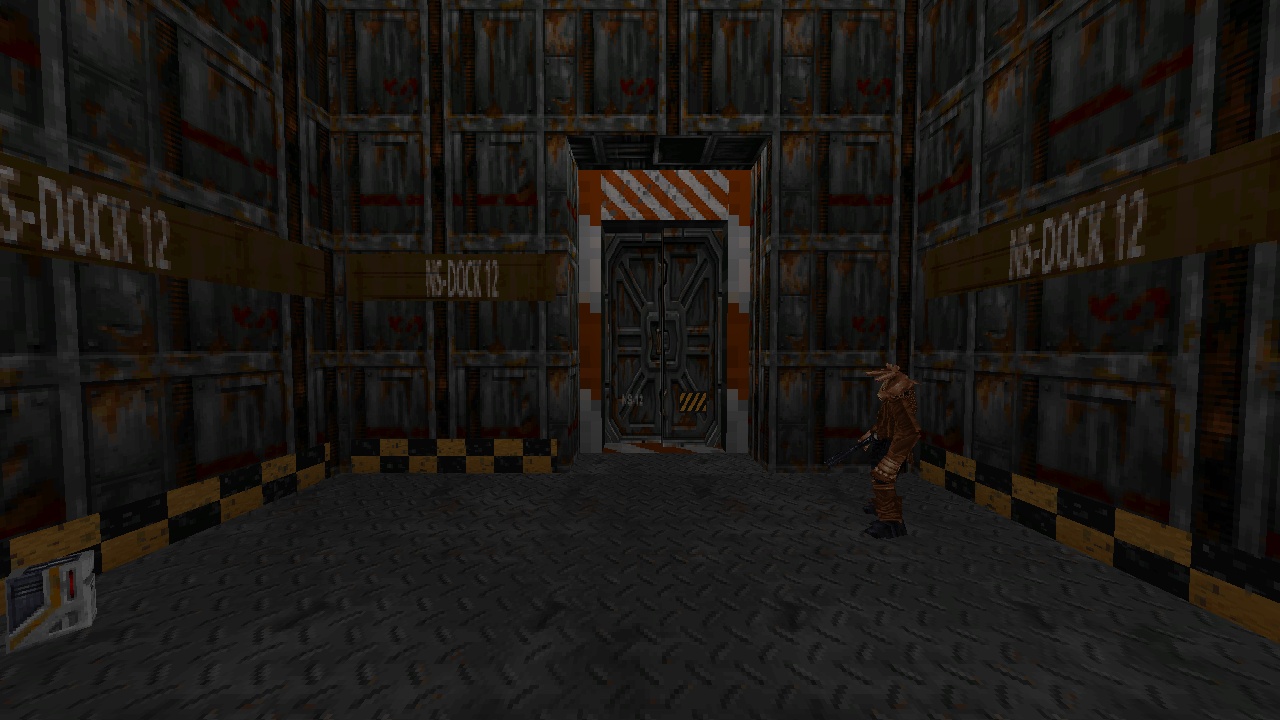

in engine
